as originally designed by C. Mills
page B
~ ~ ~ ~ ~
~ ~ ~ ~ ~
Profile 1
~ ~ ~ ~ ~
Profile 2
~ ~ ~ ~ ~
Rudder
Spars (boom and sprit)
~ ~ ~ ~ ~
Frames
~ ~ ~ ~ ~
page B
~ ~ ~ ~ ~
~ ~ ~ ~ ~

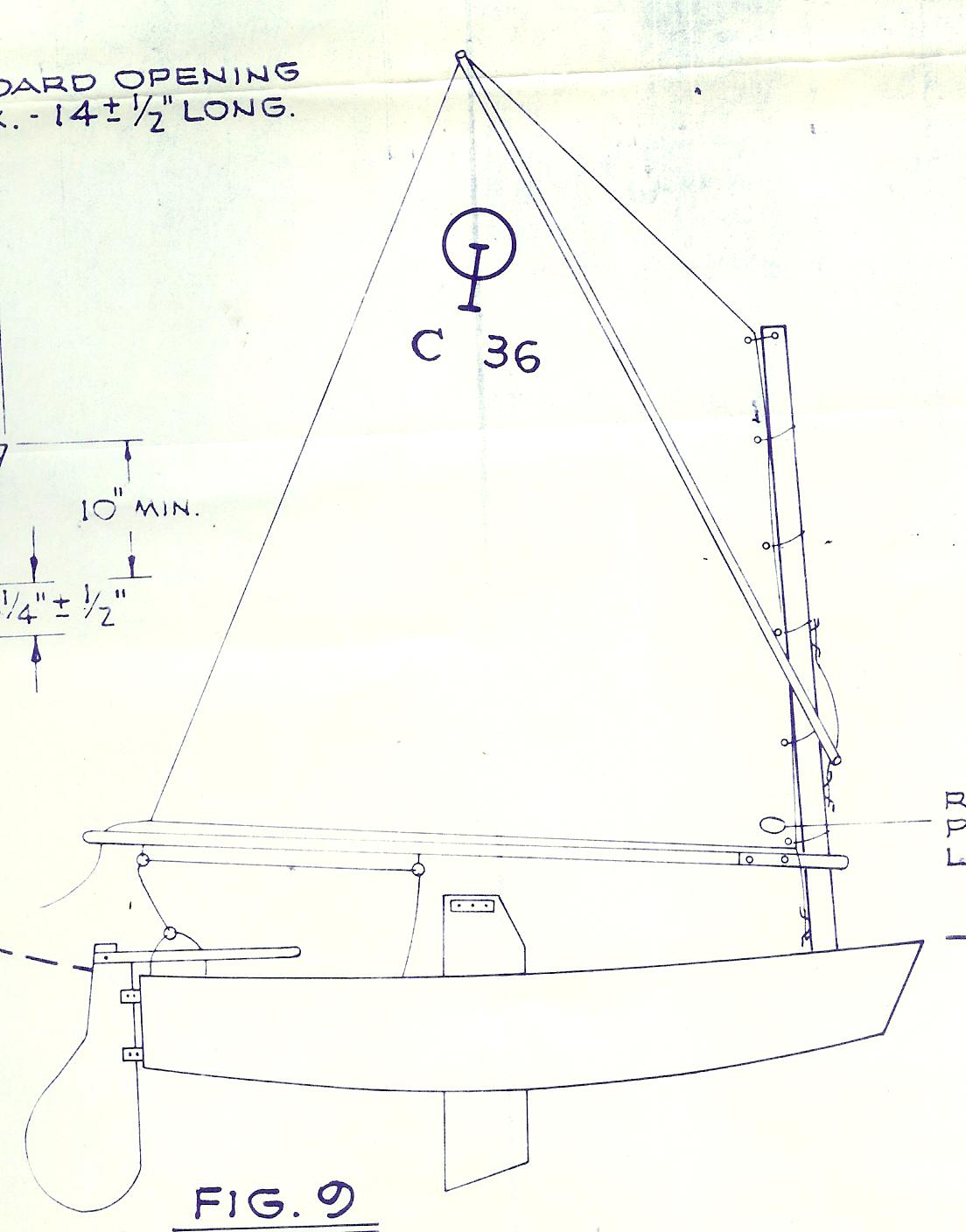

Profile 1
~ ~ ~ ~ ~
Profile 2
~ ~ ~ ~ ~

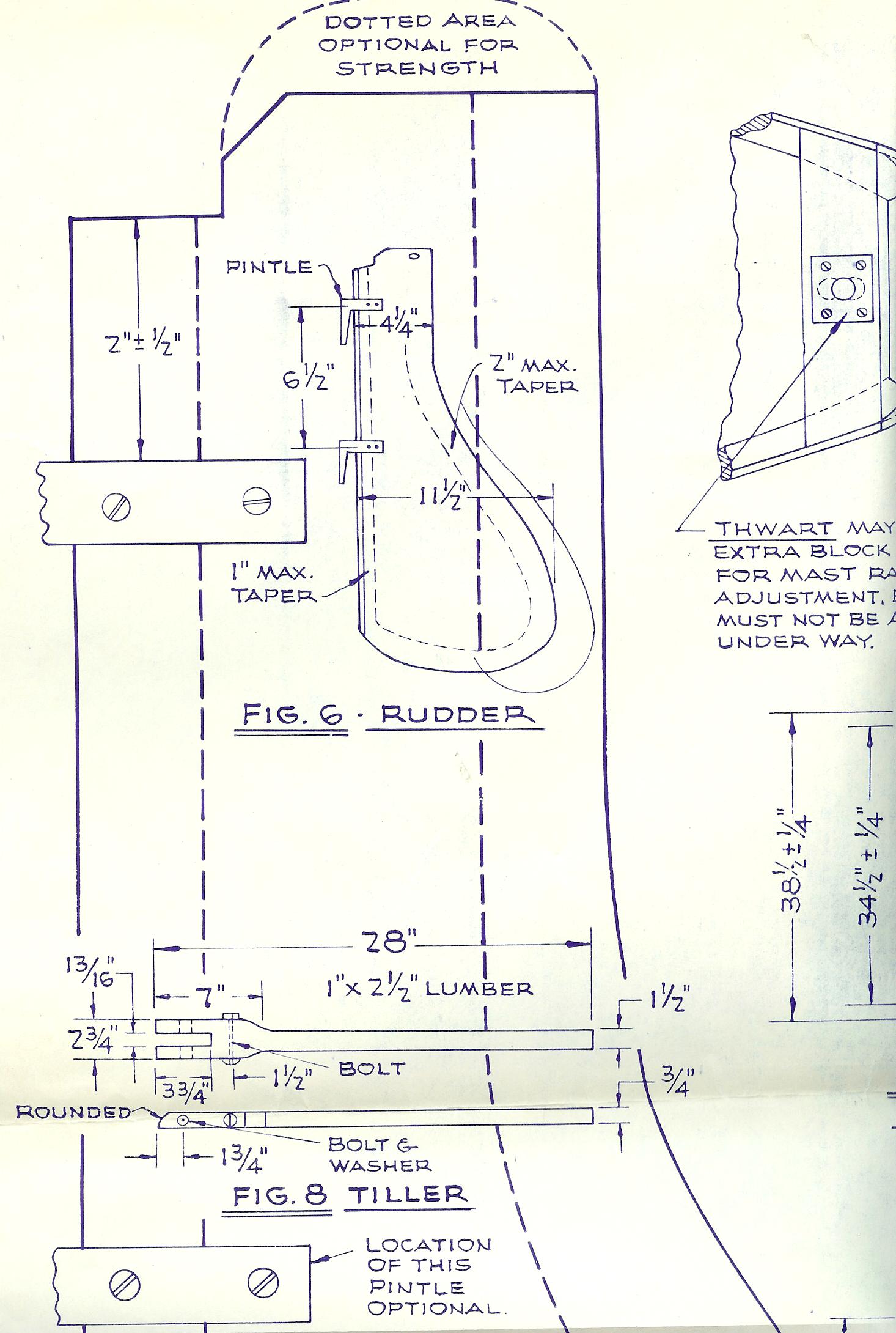

Rudder

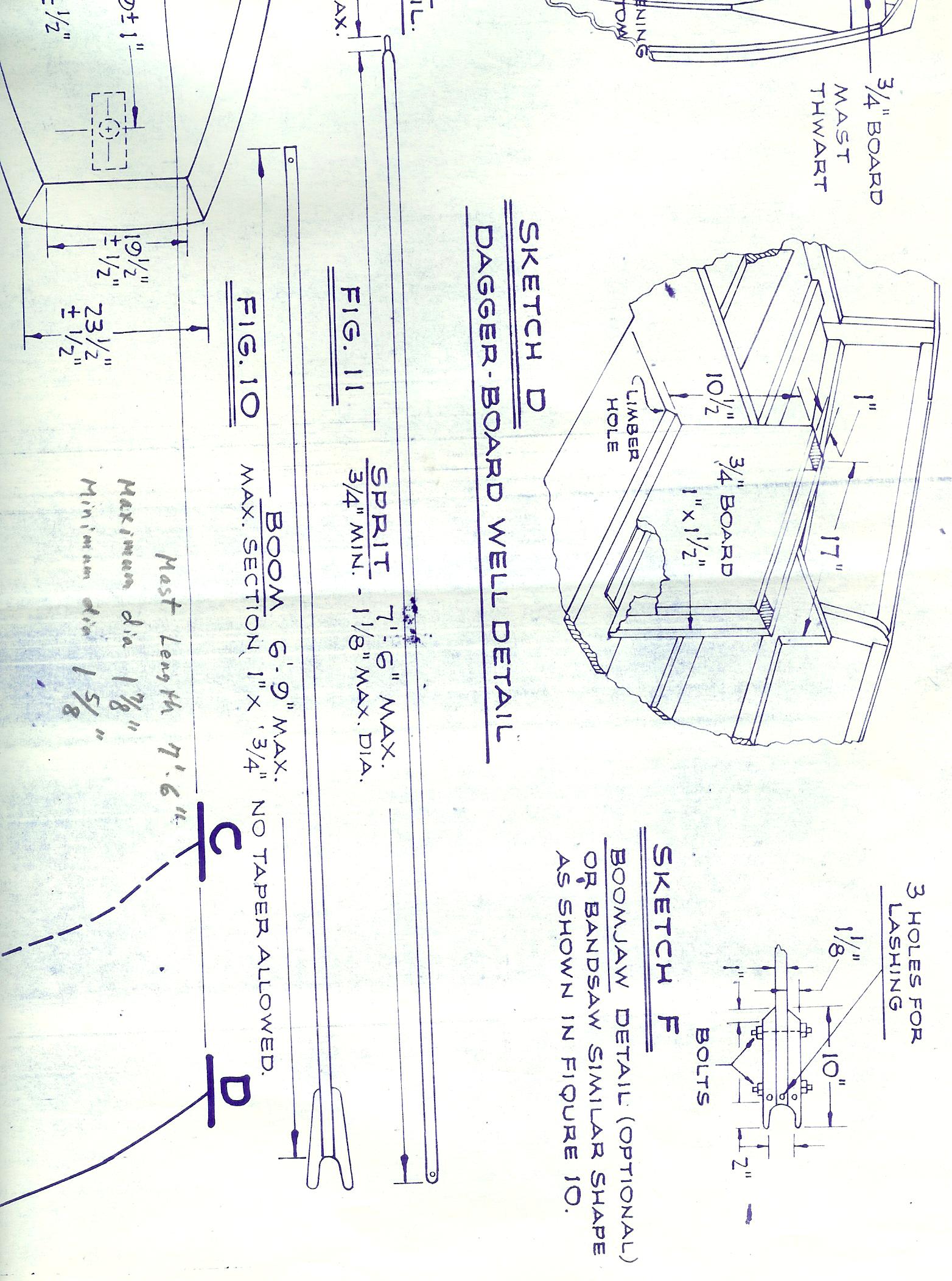

Spars (boom and sprit)
~ ~ ~ ~ ~

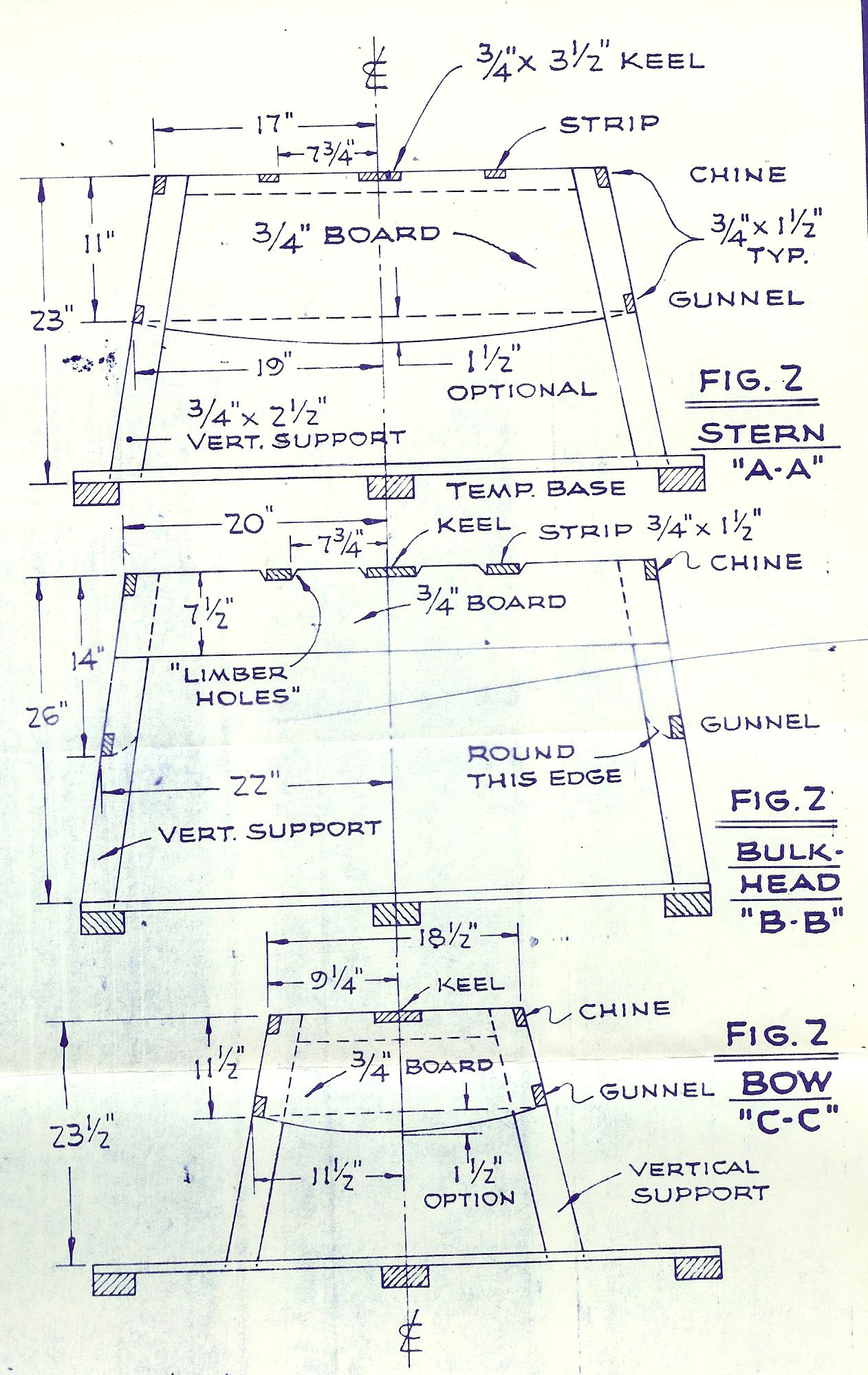

Frames
~ ~ ~ ~ ~
Opti 1948 first page of plans - drawings
Opti 1948 b next page of plans - drawings
Opti 1948 c next page of plans - drawings
Opti 1948 d next page of plans - instructions
Opti 1948 d next page - instructions
All Opti 1948 plans sketch a single page with all of the plans drawings
